Tané Hermetic Especialistas en puertas herméticas

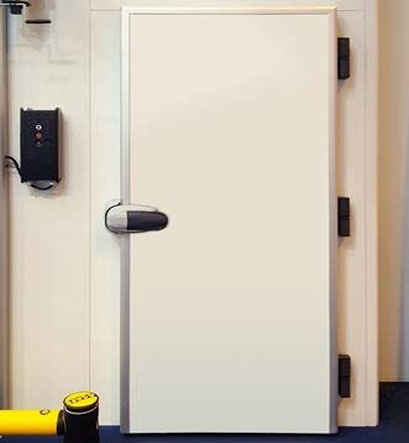

800x2.100 mm ArTHik-PF OVERLAP HINGED COLD STORAGE DOOR (Tº+0ºC)

 800x2.100 mm ArTHik-PF OVERLAP HINGED COLD STORAGE DOOR (Tº+0ºC)

800x2.100 mm ArTHik-PF OVERLAP HINGED COLD STORAGE DOOR (Tº+0ºC)

For chiller rooms up to +0ºC.
Maximum temperature difference indoor - outdoor: +/- 35ºC

  • Doors fitted onto brickwork are provided with a metallic sub-frame, without counter frame.
  • Doors fitted onto panel are provided with a counter frame (supplied custom-made).

Door in stock with special price (-30%).
Available in 1 single finish and size.

The indicated dimension considers (width x height).

Finished material
Measurements
Place of placement
Thickness of the place of placement
(between 50mm and 200mm)
Door opening direction

FINISHING

Door frame: white RAL 9016 aluminium   //   Door leaf: white lacquered galvanized steel sheet
Door leaf thickness: 90 mm insulated with 50 Kg/m3 polyurethane foam.

Equipped with:

  • Hinges with elevation slope
  • PA inserts in the frame to break the thermal bridge
  • Caps to hide the frame fixing screws
  • Stainless steel screws
  • Manual opening
OPTIONS

-



800x2.100 mm ArTHik-PF OVERLAP HINGED COLD STORAGE DOOR (Tº+0ºC)

For chiller rooms up to +0ºC.
Maximum temperature difference indoor - outdoor: +/- 35ºC

  • Doors fitted onto brickwork are provided with a metallic sub-frame, without counter frame.
  • Doors fitted onto panel are provided with a counter frame (supplied custom-made).

Door in stock with special price (-30%).
Available in 1 single finish and size.

The indicated dimension considers (width x height).

FINISHING

Door frame: white RAL 9016 aluminium   //   Door leaf: white lacquered galvanized steel sheet
Door leaf thickness: 90 mm insulated with 50 Kg/m3 polyurethane foam.

Equipped with:

  • Hinges with elevation slope
  • PA inserts in the frame to break the thermal bridge
  • Caps to hide the frame fixing screws
  • Stainless steel screws
  • Manual opening
OPTIONS

-
